1port GPON OLT XCH-GPO1H
Introduction:

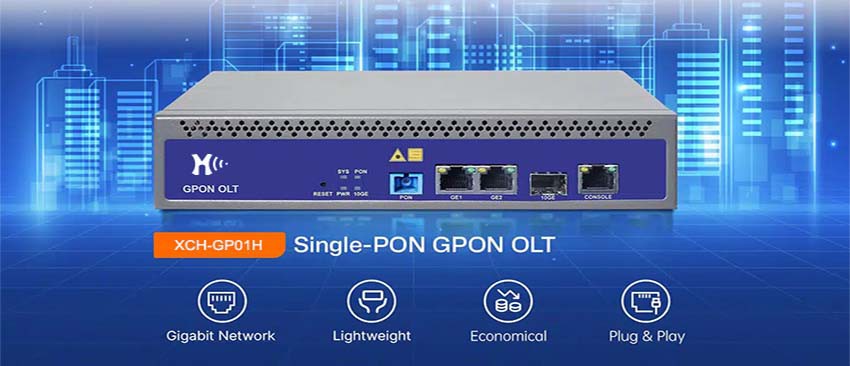

GPON Optical Line Terminal, 1U single 1 Port

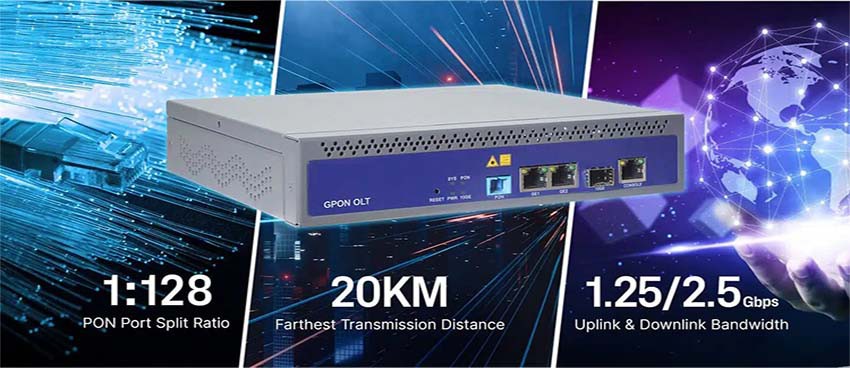

Single 1port GPON OLT is a box-type GPON OLT with one PON port . The price of single PON port GPON OLT is very attractive and the performance is very strong. The splitting ratio of its PON port is 1:128, and the farthest transmission distance is 20KM.Its uplink and downlink bandwidth is as high as: 1.25Gbps/2.5Gbps. It can be widely used in FTTH, SOHO, small business office and other application scenarios. This model is very popular , which same with VSOL V1600GS GPON OLT. But its performance is better.
Advantages:
• High-Speed Fiber Optic Coverage
Gigabit optical fiber covers the enterprise parks and the ultra-fast WiFi covers every corner.
• Lightweight with High Performance
Can help our client save 60% purchasing budget.
• Easy Installation Saves Investment
Save mass time to configure mini GPON OLT.
• Centralized Management and Plug & Play
Flexible management, let our client more convenient to assemble their broadband.

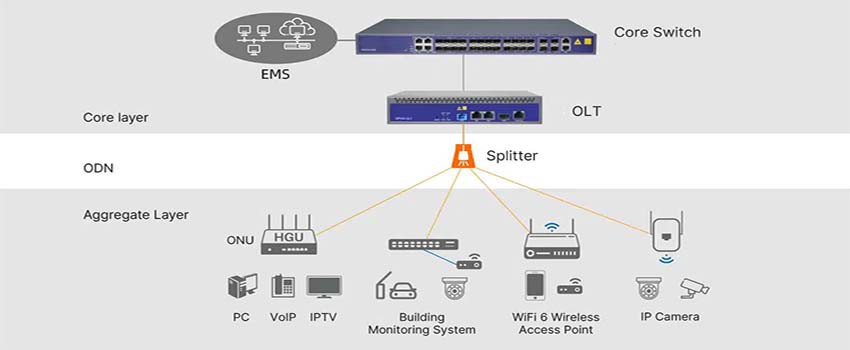

• POL Network of Small & Medium-sized Enterprises
It applies to FTTH, SOHO, small business offices, and other flexible application scenarios.

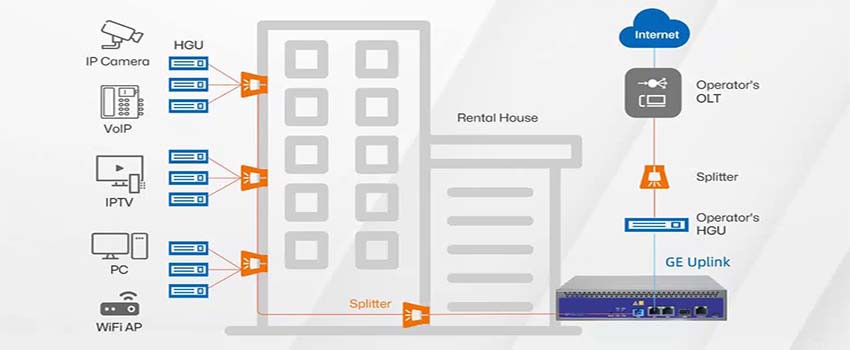

• Rental Housing Network Renovation
Suitable for rental housing network renovation, able to adapt to different environments and needs.
Management Function

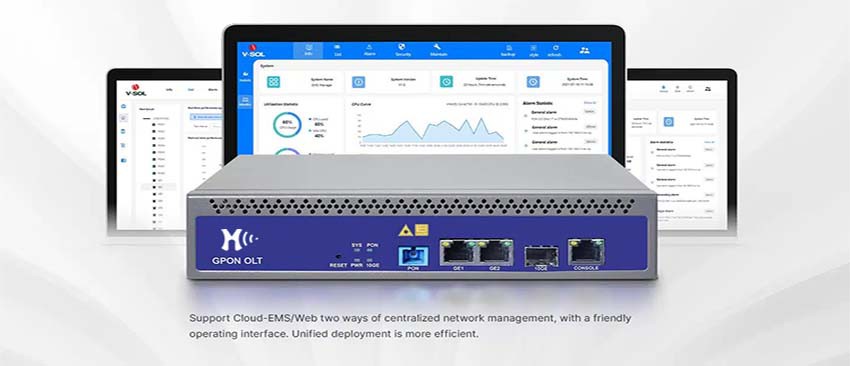

• Telnet,CLI,WEB;
• Port Status monitoring and configuration management
• Online ONTconfiguration and management
• User management
• Alarm management Layer2 Switch
• 1K Mac address
• Support 4096 VLANs
• Support port VLAN
• Support VLAN tag/Un-tag, VLAN transparent transmission
• Support storm control based on port
• Support port isolation
• Support port rate limitation
• Support 802.1D and 802.1W
• Access control list
• IEEE802.x flowcontrol
• Port stability statistic and monitoring
GPON Function
• Tcont DBA
• Gemport traffic
• In compliant with ITU-T984.x standard
• Up to 20KM transmission Distance
• Support data encryption, multi-cast, port VLAN, separation, etc
• Support ONT auto-discovery/link detection/remote upgrade of software
• Support VLAN division and user separation to avoid broadcast storm
• Support power-off alarm function, easy for link problem detection
• Support broadcasting storm resistance function Dimension (L*W*H)
• 210mm*173mm*43.6mm
Weight
• Net weight of single power: 1.07kg
Power Adapter
• DC 12V/2A
• AC 85~264V, 47/60Hz(Default)
Working Temperature
• 0°C ~+55°C
Storage Temperature
• -40~+85°C
Relative Humidity
• 10~85% (non-condensing)
|
Item |
V1600GS |
|
|
Chassis |
Rack |
1U |
|

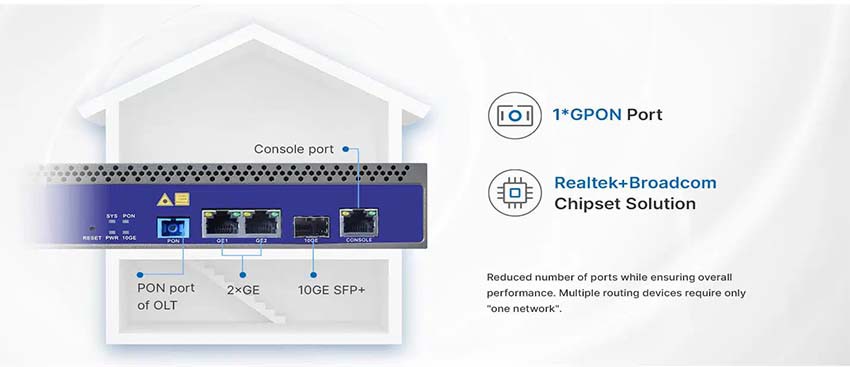

Uplink Port |
QTY |
3 |
|
RJ45(GE) |
2 |
|
|
SFP(GE)/SFP+( 10GE) |
1 |
|
|
GPON Port Specification |
QTY |
1 |
|
Fiber Type |
9/ 125μm SM |
|
|
Connector |
SC/UPC, Class C++, C+++ |
|
|
GPON port speed |
Upstream 1.244Gbps, Downstream 2.488Gbps |
|
|
Wavelength |
TX 1490nm, RX 1310nm |
|
|
Max splitting ratio |
1:128 |
|
|
Transmission Distance |
20KM |
|
|
Management Ports |
1*CONSOLE port |
|
|
Backplane Bandwidth (Gbps) |
16 |
|
|
Port Forwarding Rate(Mpps) |
23.808 |
|
|
Management Mode |
Console/WEB/Telnet/CLI |
|
|
Lightning protection level |
Power supply |
4KV |
|
Device Interface |
1KV |
|
