XCH-WG1608 Gigabit Dual Band Wifi Router
Summary
Brief overview
This document describes the electrical characteristics, RF performance, size, and application environment of XCH-WG1608. Under the introduction of this document, end users or developers can quickly understand the hardware functions of XCH-WG1608.
XCH-WG1608 is 1000Mbps WAN port dial-up, and then shares the Internet network through wireless WiFi 5 and 1000Mbps wired LAN.
Reference standard
Related standard specifications:
- USB3.0/USB2.0 Bus standard
- PCI- Express Bus standard
- TF Card Interface standard
- SIM/USIM Interface standard
- IEEE802.11n/g/b/a/ac
- IEEE802.3/802.3u/802.ab
- PCI Express M.2 Specification Rev1.1
- Mini PCI Express Card Electro mechanical Specification Revision 1.0-2003

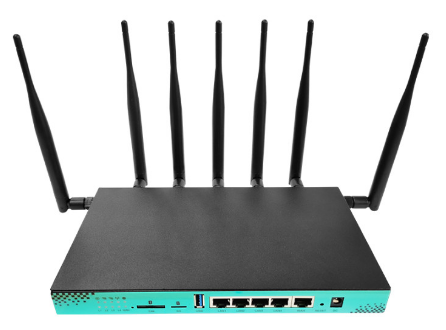

Product picture
Main features of the product
- Adopt MT7621A project, MIPS dual-core CPU, the main frequency is up to 880MHZ
- 2.4G rate up to 300Mbps, 5.8G rate up to 867Mbps, 5.8G supports MU-MIMO
- Using high-speed 256MB DDR3 with 16MB Nor Flash
- 1WAN, 4LAN all 1000M adaptive network ports, support automatic flip (Auto MDI/MDIX)
- Support TF card storage interface, can be used to expand SMABA or FTP network storage function
- Support "One-key flash mode", that is, long press the reset button to enter the rescue flash mode
- Built-in M.2 standard interface, can be used to connect 5G mobile communication module
- External standard SIM card interface, support SIM/USIM card
- External high gain omnidirectional antenna, wireless signal 360 degrees without dead angle
Hardware function
Hardware interface introduction
|
5G Version |
|
|
Bands & Frequency |
|
|
5G NR NSA |
n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41 /n48*/n66/n71/n77 /n78 /n79 |
|
5G NR SA |
n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48*/n66/n71/n77/n78/n79 |
|
LTE-FDD |
B1/B2/B3/B4/B5/B7/B8/B9/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71 |
|
LTE-TDD |
B34/B38/39/B40/B41/B42/B43/B48 |
|
LTE DL 4 × 4 MIMO |
B1/B2/B3/B4/B7/B25/B30/B32/B34/B38/39/B40/B41/B42/B43/B48/B66 |
|
LAA |
B46 (only support 2 × 2 MIMO) |
|
WCDMA |
B1/B2/B3/B4/B5/B6/B8/B19 |
|
CAT16 4G Version |
|
|
LTE-FDD |
B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29 ①/B30/ B32 ①/B66; |
|
LTE-TDD |
B38/39/B40/B41/B42/B43/B46 ①(LAA)/B48(CBRS) |
|
WCDMA |
B1/B2/B3/B5/B8 |
|
Ethernet Port |
1*WAN port,1000Mbps supports auto flip (Auto MDI/MDIX) Compliant with IEEE 802.3/802.3u/802.ab |
|
4*LAN port,1000Mbps support auto flip (Auto MDI/MDIX) Compliant with IEEE 802.3/802.3u/802.ab |
|
|
TF Card Interface |
TF card slot |
|
SIM card Interface |
1*sim card slot, support SIM/USIM |
|
Power Interface |
DC5.0*2.1MM interface |
|
Button |
1*reset |
|
Antennas |
2* omnidirectional 5dbi 2.4G and 5.8G antennas |
|
4*omnidirectional 5dbi 5G mobile communication antennas, 1*GPS antenna |
|
|
M.2 Interface |
Built-in M.2 slot, support PCIE and USB3.0 bus |
Indicator function introduction
|
WAN LED |
Connect to the Internet port always bright, flashes when have data communication |
|
LAN1 LED |
Connect to the Internet port always bright, flashes when have data communication |
|
LAN2 LED |
Connect to the Internet port always bright, flashes when have data communication |
|
LAN3 LED |
Connect to the Internet port always bright, flashes when have data communication |
|
LAN4 LED |
Connect to the Internet port always bright, flashes when have data communication |
|
Adapter LED |
Always bright when power on, No light when the power supply is faulty or not connected |
|
2.4G WIFI LED |
Open 2.4G WIFI function is always bright, flashes when there is data communication;when not open 2.4G WIFI or 2.4G WIFI function fails, Not bright |
|
5.8G WIFI LED |
Open 5.8G WIFI function is always bright, flashes when there is data communication;when not open 5.8G WIFI or 5.8G WIFI function fails, Not bright |
|
Move 5G LED |
When the routing system recognizes and successfully mounts the 5G mobile communication module, it is always bright. When the 5G mobile communication module is faulty or does not access the 5G mobile communication module, it does not light. |
|
Internet LED |
The device dials successfully through 5G mobile communication module or WAN port. It is always bright when communication with the Internet is normal, and it is off when the device cannot access the Internet |
Hardware platform introduction
|
Processor |
MT7621A MIPS dual core CPU,880MHZ Main frequency |
|
2.4GWIFI chipset |
MT7603EN IEEE 802.11n/g/b,Maximum rate 300Mbps |
|
5.8GWIFI chipset |
MT7613AEN IEEE 802.11ac/a,Maximum rate 867Mbps |
|
Ram |
DDR3 256MB |
|
Flash |
Nor Flash 16MB |
|
Not support NAND Flash |
Description Of Power Supply And Power Consumption
| |
Test Conditions |
Min |
Rated value |
Max |
Unit |
|
Operating Voltage |
T A = 25°C |
6 |
12 |
32 |
V |
|
Absolute working voltage |
T A = 25°C |
5.5 |
|
36 |
V |
|
Working current |
VIN=12V,T A = 25°C |
0.4 |
0.6 |
1.5 |
A |
Please use the standard power adapter to supply power to this product. If not use the standard power supply, please strictly follow the above power supply specifications to supply power to this product, otherwise it will damage the product. If you use batteries or vehicle power supply, please be sure to take anti-static and anti-surge measures.
WIFI Wireless Parameter Introduction
WIFI 2.4G
Compatible with IEEE 802.11 b/g/n, support IEEE 802.11 d/h/k; support 20MHz, 40MHz, using 2T2R MIMO antenna technology, the maximum connection rate is up to 300Mbps. The following is a description of the power frequency, reception sensitivity, and transmission power of 2.4G WIFI.
| |
Explanation |
Max |
Rated value |
Min |
Unit |
|
Working Frequency |
|
2484 |
|
2412 |
MHz |
|
Receive Sensitivity |
11 Mbps CCK |
-86 |
-87.5 |
-89 |
dBm |
|
54 Mbps OFDM |
-72 |
-74 |
-76 |
dBm |
|
|
BW=20MHz MCS 7 |
-70 |
-72 |
-74 |
dBm |
|
|
BW=40MHz MCS 7 |
-68 |
-70 |
-71 |
dBm |
|
|
Transmit Power |
11 Mbps CCK |
20 |
19 |
18 |
dBm |
|
54 Mbps OFDM |
18 |
17 |
16 |
dBm |
|
|
BW=20MHz MCS 7 |
18 |
17 |
16 |
dBm |
|
|
BW=40MHz MCS 7 |
17 |
16 |
15 |
dBm |
WIFI 5.8G
Compatible with IEEE 802.11 a/ac, support IEEE 802.11 d/e/h/i/k/r/w; support 20MHz, 40MHz, 80MHz, adopt 2T2R MIMO antenna technology, the highest connection rate is up to 867Mbps. The following is a description of the power frequency, receiving sensitivity, and transmit power of 5.8G WIFI.
| |
Explanation |
Max |
Rated value |
Min |
Unit |
|
Working Frequency |
|
5825 |
|
5180 |
MHz |
|
Receive Sensitivity |
54 Mbps OFDM |
-72 |
-74 |
-75 |
dBm |
|
BW=20MHz MCS 7 |
-70 |
-72 |
-73 |
dBm |
|
|
BW=40MHz MCS 7 |
-69 |
-70 |
-71 |
dBm |
|
|
BW=80MHz MCS 9 |
-58 |
-59 |
-60 |
dBm |
|
|
Transmit Power |
54 Mbps OFDM |
19 |
18 |
17 |
dBm |
|
BW=20MHz MCS 7 |
18 |
17 |
16 |
dBm |
|
|
BW=40MHz MCS 7 |
18 |
17 |
16 |
dBm |
|
|
BW=80MHz MCS 9 |
17 |
16 |
15 |
dBm |
Introduction of structural parameters and accessories
|
Weigh(KG) |
1.22KG |
|
|
Case Size |
L*W*H=240MM*135MM*25MM |
|
|
Color |
Black |
|
|
Accessories |
Power Adapter |
12V/2A 1PCS |
|
Manual |
1PCS |
|
|
Certificate of conformity |
1PCS |
|
|
Cable |
Category 5 network cable 1PCS |
|
|
SIMcard cover |
1PCS |
|
|
Antennas |
5G move antenna compatible 4G\3G\2G frequency band 4PCS |
|
|
1*GPS antenna |
||
|
2.4G and 5.8G dual frequency antenna 2PCS |
||
Dual frequency antenna
This product has a built-in M.2 interface, which can be used to expand 5G mobile communication functions. The built-in M.2 interface supports USB3.0 and PCIE bus. The specific support of 5G mobile communications for NSA or SA is determined by the selected 5G module. At present, this product has completed the joint debugging with Guanghetong's FM150 series module.
Product working environment requirements
|
Operating temperature |
0℃ to 40℃ |
|
Storage temperature |
-40℃ to 70℃ |
|
Working humidity |
10% to 90%RH Non-condensing |
|
Storage humidity |
5% to 90%RH Non-condensing |
Software configuration information
|
Default IP |
192.168.1.1 |
|
Username Password |
root/admin |
|
2.4G SSID |
WIFI-XXXXXX (X is the last 6 digits of MAC address), no password by default |
|
5.8G SSID |
WIFI-5G-XXXXXX (X is the last 6 digits of MAC address), no password by default |
Above is the general default preparation information of the product. The WIFI SSID may be different when using our OS firmware or OPENWRT firmware, but the default IP and WEB login name and password of this product remain unchanged. For other detailed software functions, please refer to the product description.
